Hot Cooking Range

SINGLE BURNER / STOCK POT GAS RANGE:-

Fabricated in Stainless Steel top with S.S. Angle Farme support beneath, high/low pressure burner with heavy duty cast iron vessel rest, front and sides made of S.S., S.S. spillage tray, with needle control valve and pilot valve, with S.S. 16 SWG uprights with adjustable Ferro Nylon bullet feets.

Material, construction ---- requirements.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 Gas Burner Std Make 01
04 Pilot Burner Std Make 01
05 Gas Valve Std 02
06 Casting Cast Iron 01
07 Leg : 40*40MM Sq Pipe S.S. 304 16G 04
08 Bullet Feet - Adjustable Nylon 04
09 Drain Tray S.S. 304 18G 01

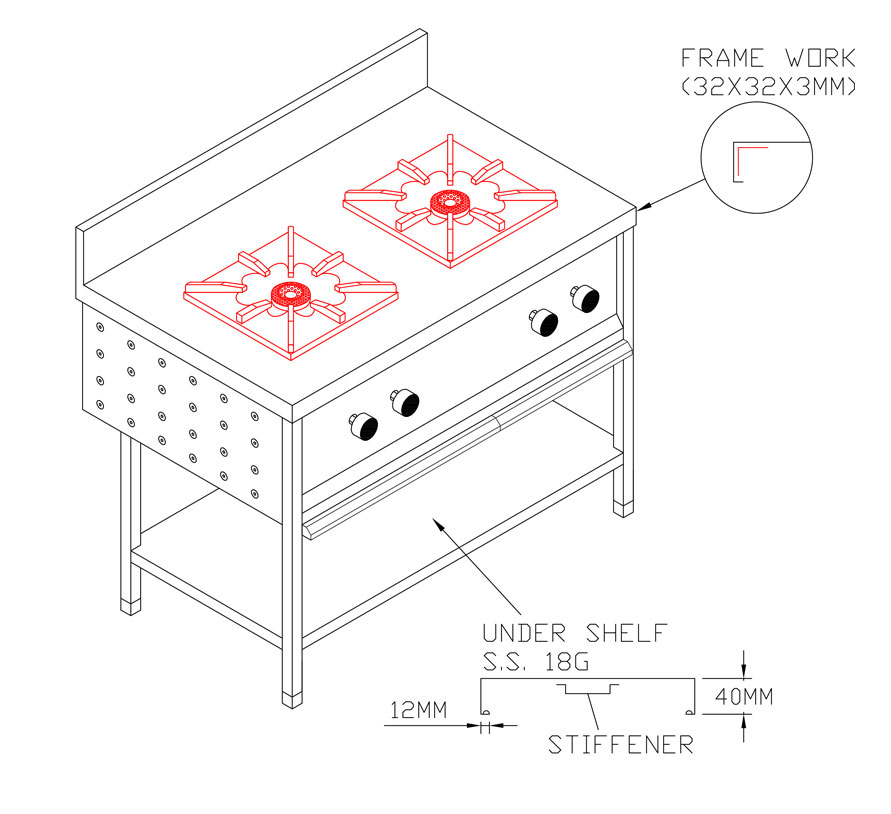

2 BURNER INDIAN GAS RANGE

Fabricated in Stainless Steel top with S.S. Angle Farme support beneath, high/low pressure burners with heavy duty cast iron vessel rests, front and sides made of S.S., individual S.S. spillage tray, with needle control valves and pilot valves, with S.S. 16 SWG uprights with adjustable Ferro Nylon bullet feets. Available with Undershelf or without undershelf.

Material, construction ---- requirements.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 Gas Burner Std Make 02
04 Pilot Burner Std Make 02
05 Gas Valve Std 04
06 Casting Cast Iron 02
07 Leg : 40*40MM Sq Pipe S.S. 304 16G 04
08 Bullet Feet - Adjustable Nylon 04
09 Drain Tray S.S. 304 18G 02

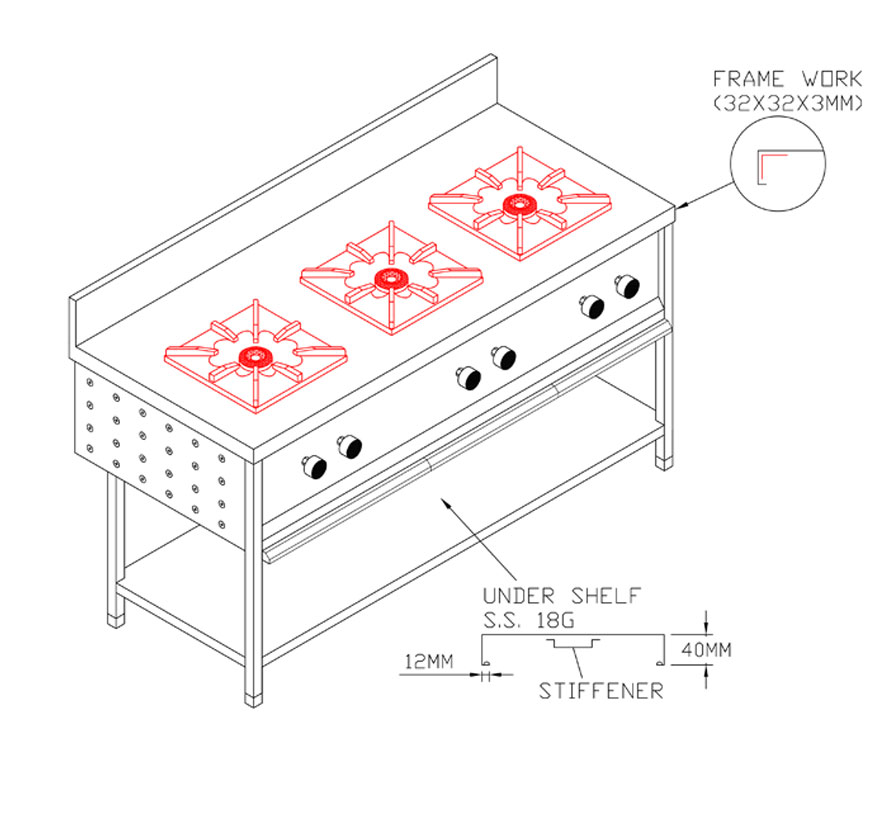

3 BURNER INDIAN GAS RANGE

Fabricated in Stainless Steel top with S.S. Angle Farme support beneath, high/low pressure burners with heavy duty cast iron vessel rests, front and sides made of S.S., individual S.S. spillage tray, with needle control valves and pilot valves, with S.S. 16 SWG uprights with adjustable Ferro Nylon bullet feets. Available with Undershelf or without undershelf.

Material, construction ---- requirements.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 Gas Burner Std Make 03
04 Pilot Burner Std Make 03
05 Gas Valve Std 06
06 Casting Cast Iron 03
07 Leg : 40*40MM Sq Pipe S.S. 304 16G 04
08 Bullet Feet - Adjustable Nylon 04
09 Drain Tray S.S. 304 18G 03

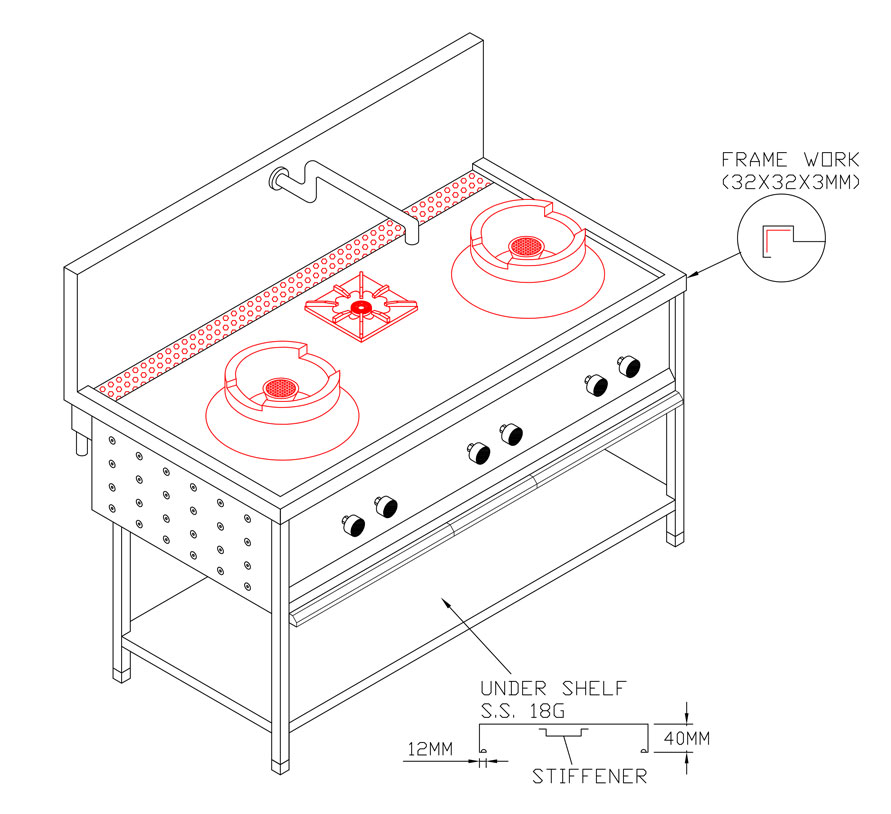

2+1 CHINESE GAS RANGE

Specially designed for cooking Chinese dishes. S.S. dome type vessel rests. With drain channel and Chilling water line. Fabricated in Stainless Steel top with S.S. Angle Farme support beneath, Provided with high pressure burners and swiveling faucet for water, front and sides made of S.S., Individual S.S. spillage tray, with needle control valves and pilot valves. For Stock Pot, burner can be with low or high pressure as per customers requirement, with S.S. 16 SWG uprights with adjustable Ferro Nylon bullet feets. Available with Undershelf or without undershelf.

Material, construction ---- requirements.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 Gas Burner Std Make 03
04 Pilot Burner Std Make 03
05 Gas Valve Std 06
06 Casting Cast Iron 03
07 Leg : 40*40MM Sq Pipe S.S. 304 16G 04
08 Bullet Feet - Adjustable Nylon 04
09 Drain Tray S.S. 304 18G 03

3+2 CHINESE GAS RANGE

Quality is at the heart of all activities at Professional Kitchen Equipments We have always strived hard to manufacture commercial kitchen equipments that are durable, made within budgetary limitations of customers and those that would easily get accommodated into your commercial kitchen plan.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 Gas Burner Std Make 05
04 Pilot Burner Std Make 05
05 Gas Valve Std 10
06 Casting Cast Iron 05
07 Leg : 40*40MM Sq Pipe S.S. 304 16G 06
08 Bullet Feet - Adjustable Nylon 06
09 Drain Tray S.S. 304 18G 05

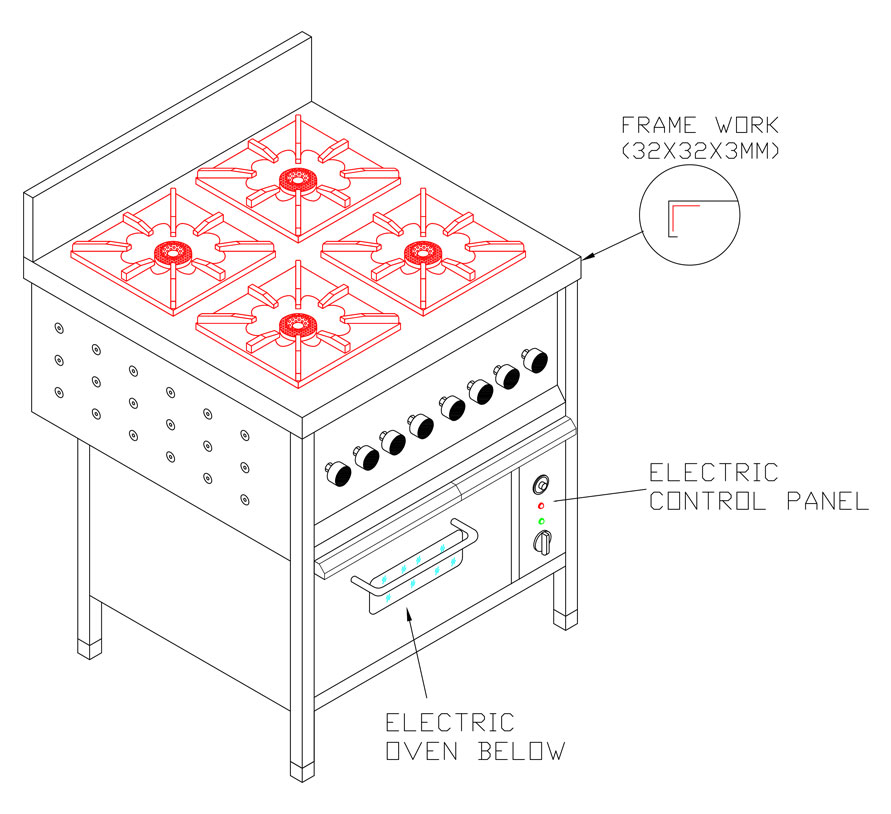

4 - BURNER CONTINENTAL GAS RANGE WITH ELECTRIC OVEN BELOW

Fabricated in Stainless Steel top with S.S. Angle Farme support beneath, Fitted with 4 high Pressure burners or 2 low pressure & 2 High pressure burners with heavy duty cast iron vessel rests, front and sides made of S.S., individual S.S. spillage tray, with needle control valves and pilot valves, with S.S. 16 SWG uprights with adjustable Ferro Nylon bullet feets. Need 3 Phase electrical connection for the Oven.

Material, construction ---- requirements.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 Gas Burner Std Make 04
04 Pilot Burner Std Make 04
05 Gas Valve Std 08
06 Casting Cast Iron 04
07 Leg : 40*40MM Sq Pipe S.S. 304 16G 04
08 Bullet Feet - Adjustable Nylon 04
09 Drain Tray S.S. 304 18G 02

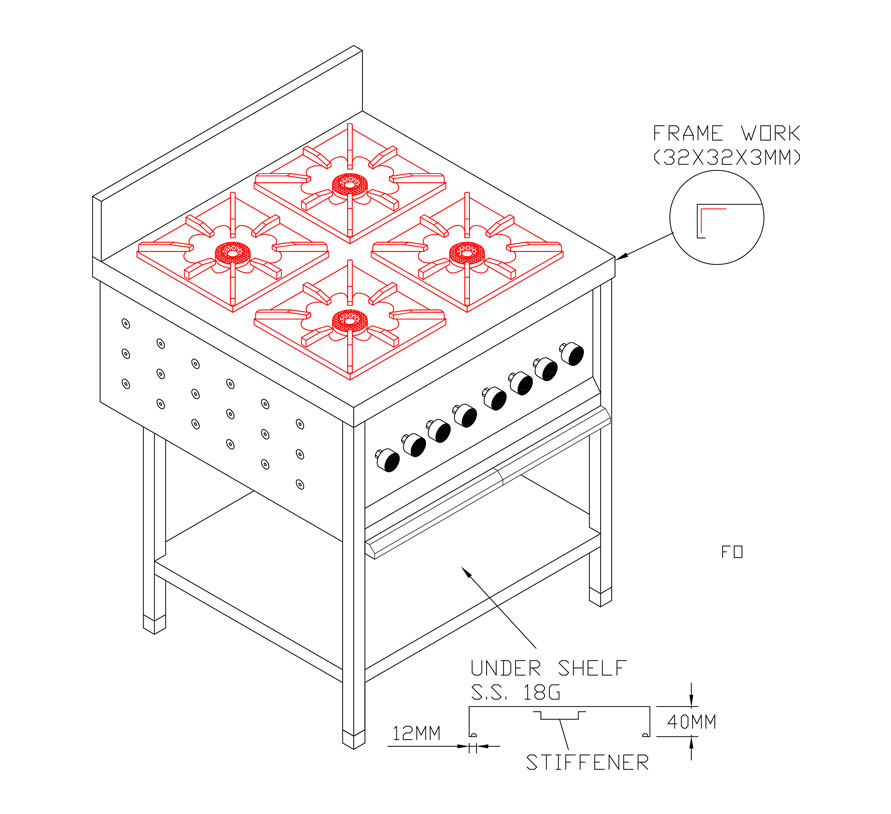

4 BURNER CONTINENTAL GAS RANGE

Fabricated in Stainless Steel top with S.S. Angle Farme support beneath, Fitted with 4 high Pressure burners or 2 low pressure & 2 High pressure burners with heavy duty cast iron vessel rests, front and sides made of S.S., individual S.S. spillage tray, with needle control valves and pilot valves, with S.S. 16 SWG uprights with adjustable Ferro Nylon bullet feets. Available with Undershelf or without undershelf.

Material, construction ---- requirements.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 Gas Burner Std Make 04
04 Pilot Burner Std Make 04
05 Gas Valve Std 08
06 Casting Cast Iron 04
07 Leg : 40*40MM Sq Pipe S.S. 304 16G 04
08 Bullet Feet - Adjustable Nylon 04
09 Drain Tray S.S. 304 18G 02

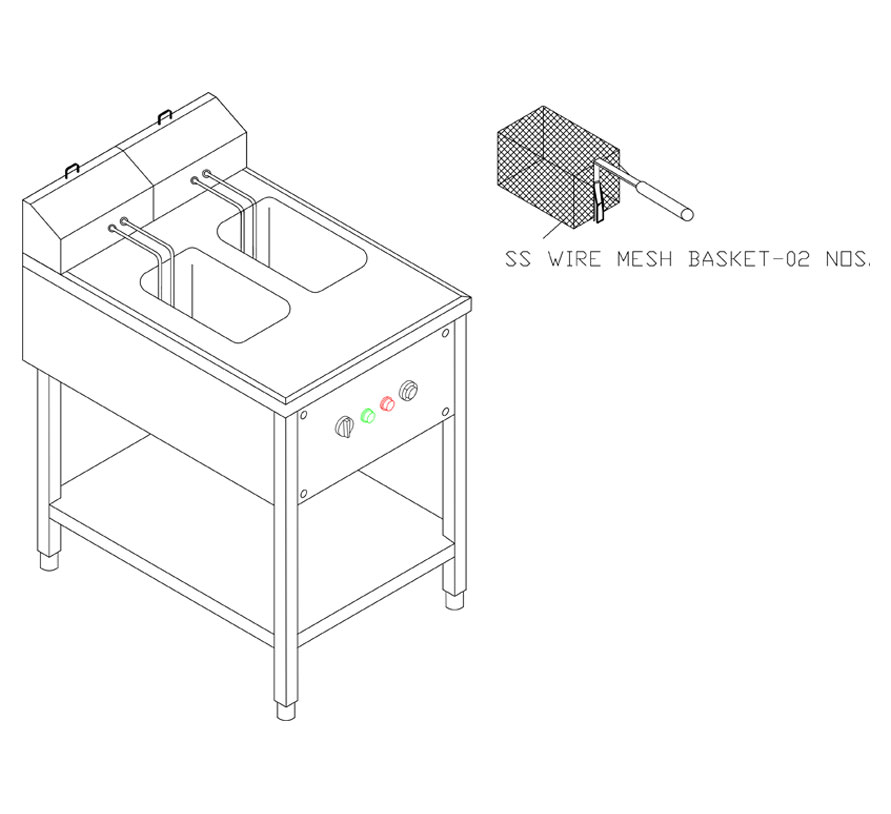

DEEP FAT FRYER

Providing the best range of free standing Deep fat Fryer with bottom shelf. Fabricated in Stainless Steel. Electrically operated with individual thermostat, with capacity of 8 ltrs. tank each with light weight basket, removable oil tanks, Our DFF is with safety thermostat for each tank so that temperature of oil will not raise beyond 180 degree. We are using S.V./ reputed make heaters for equipment longer life. Fitted with S.S. 16 SWG uprights with adjustable Ferro Nylon bullet feets. Available with Single tank and Table top models also.

Material, construction ---- requirements.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 Heater 3 Kw SV Make 02
04 Thermostat Std 02
05 Indicator Bulb Std 02
06 Leg : 40*40MM Sq Pipe S.S. 304 16G 04
07 Bullet feet - Adjustable Nylon 04

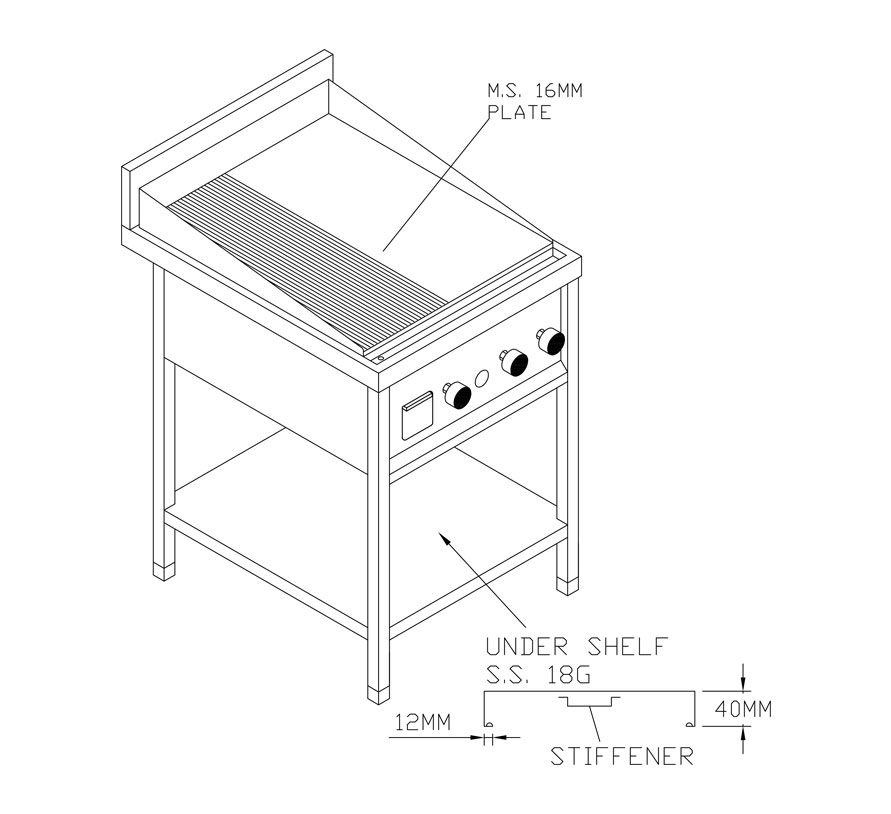

HOT GRILL PLATE

Fabricated in Stainless Steel top with S.S. Angle Farme support beneath, with V- type Burners with needle control valves and pilot valves, front and sides made of S.S., With undershelf or without undershelf, with S.S. 16 SWG uprights with adjustable Ferro Nylon bullet feets. Plate available with full plain/half plain & half grooved or full grooved as per customers requirement.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 V Burner Std Make 02
04 Pilot Burner Std Make 01
05 Gas Valve Std 03
06 MS Hot Plate 16mm MS 01
07 Leg : 40*40MM Sq Pipe S.S. 304 16G 04
08 Bullet Feet - Adjustable Nylon 04
09 Oil Drip Tray S.S. 304 18G 01

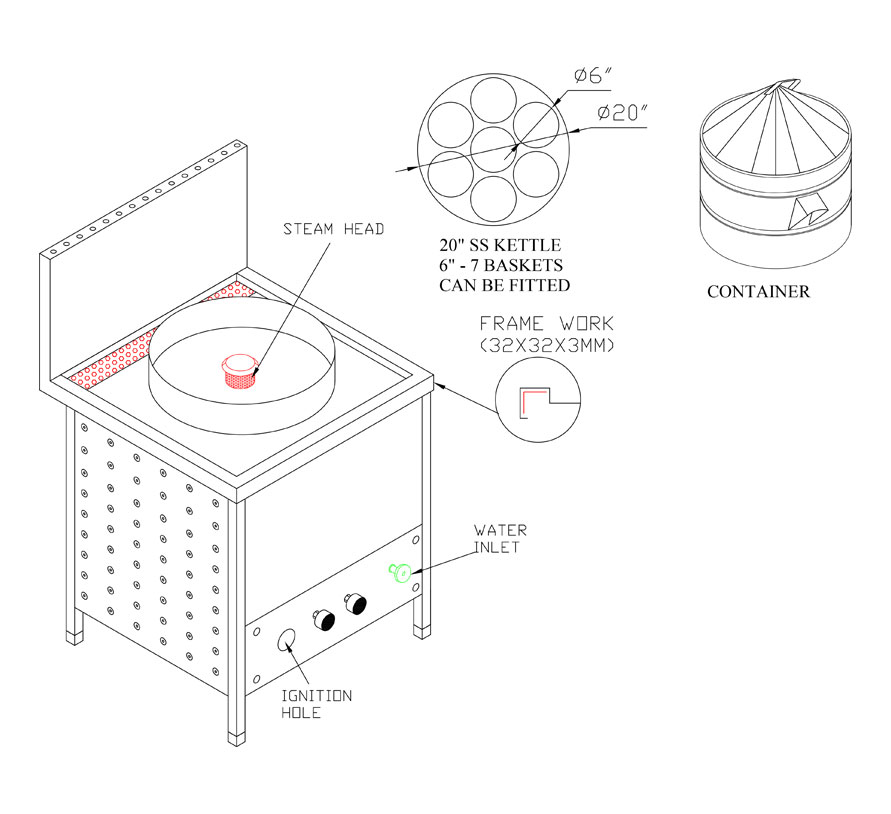

DIM SUM STEAMER (GAS OPERATED)

Fabricated in Stainless Steel. Top will be of S.S. 304 16 SWG with drain channel at front side on top with S.S. perforated strainer basket, Provided with dia. 20" Kettle and heavy duty S.S. basket with 7 nos of holes of dia. 6" with S.S. 16 SWG uprights with adjustable Ferro Nylon bullet feets.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 Gas Burner Std Make 01
04 Pilot Burner Std Make 01
05 Gas Valve Std 02
06 Water Tank SS 304 14G 01
07 Leg : 40*40MM Sq Pipe S.S. 304 16G 04
08 Bullet Feet - Adjustable Nylon 04

ROBATA GRILL

Our unique Chef Cool design keeps the heat inside the grill resulting in a cooler kitchen and a grateful chef.

All made as per client requirements

No Description Malt Qty
01 Top S.S. 304 16G 01
02 Farme Work- 32*32*3MM S.S. L-Angle --
03 V Burner Std Make 01
04 Pilot Burner Std Make 01
05 Gas Valve Std 01
06 MS Rod Grill 12*12mm MS 01
07 Leg : 40*40MM Sq Pipe S.S. 304 16G 04
08 Bullet Feet - Adjustable Nylon 04
09 Ash Collecting tray S.S. 304 18G 01
