Commercial Bar Refrigeration includes back bar coolers, bottle coolers, draft beer coolers or dispensers, and glass fosters. Placed at back counters of the bar or underneath of the counter. Bar refrigeration is designed to help your bartenders and servers stay on top of their beverages, keeping the bottles cold until they are needed.
We offer mixology station which includes insulated ice bin, S.S. sink, condiment dispenser, drain board for mixing, speed rail to hole the bottles and storage below. Full body fabricated in S.S. 304.
All in one cocktail station with insulated ice bin with drain board.
Size : 60 x 30 x 32 x 2
All Dimensions Are In Inches
All made as per client requirements
No | Description | Malt | Qty |
---|---|---|---|
01 | Top | S.S. 304 16G | 01 |
02 | Uprights : 32*32MM Sq. Pipe | S.S. 304 16G | 04 |
03 | Bullets | Nylon | 04 |
04 | Under Farme Angle | 25*25*3MM | -- |
05 | Claddin | S.S. 304 20G | -- |
06 | Doors | S.S. 304 18G | -- |
07 | Sink | S.S. 304 16G | -- |

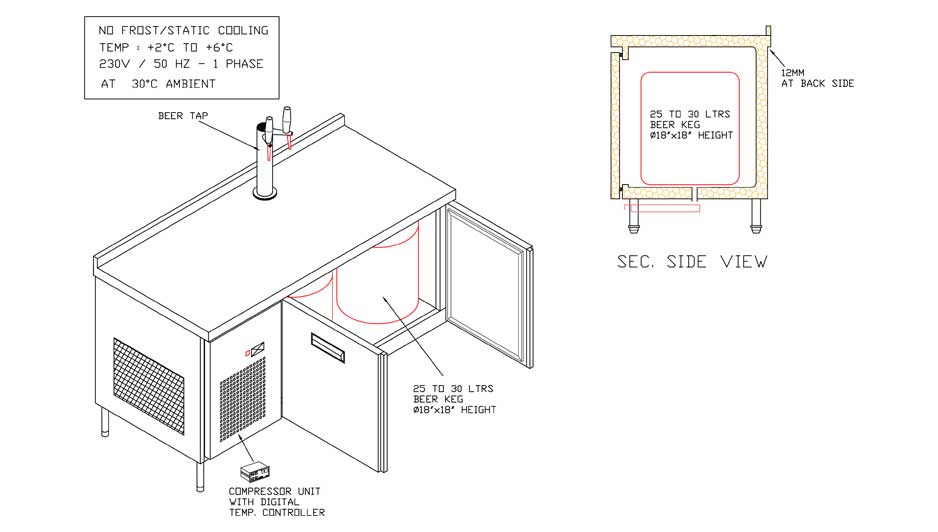

All made as per client requirements
No | Part Name | Material | Qty |
---|---|---|---|
01 | Machine Top | S.S. 304 18G | 01 |
02 | Exterior Body | S.S. 304 20G | -- |
03 | Interior Body | S.S. 304 22G | -- |
04 | Doors | S.S. 304 18G | 02 |
05 | Doors Hinges | Std | 2 Set |
06 | Doors Liners | S.S. 22G | 02 |
07 | Doors Handles | Black PVC | 02 |
08 | Compressor | Emerson | 01 |
09 | Controller | Subzero | 01 |
10 | Refrigerant | 134q | -- |
11 | Insulation | 55 MM | -- |
12 | Central Lock | Std | 01 Set |
13 | Back And Bace | S.S. | -- |
14 | Bullet Feet | Nylon | 04 |
15 | leg 38MM Dia. | S.S. 16G | 04 |
Size : 900 x 600 x 900 MM
All made as per client requirements
No | Part Name | Material | Qty |
---|---|---|---|
01 | Exterior Body | S.S. 304 20G | -- |
02 | Interior Body | S.S. 304 22G | -- |
03 | Doors | S.S. 304 18G | 02 |
04 | Doors Hinges | Std | 2 Set |
05 | Doors Liners | S.S. 22G | 02 |
06 | Doors Handles | Black PVC | 02 |
07 | Shelves | S.S. Rod | 04 |
08 | Shelves Holder | S.S. 304 16G | 04 Sets |
09 | Compressor | Emerson | 01 |
10 | Controller | Subzero | 01 |
11 | Refrigerant | 134q | -- |
12 | Insulation | 55 MM | -- |
13 | Key Lock | Std | 02 |
14 | Back And Base | S.S. | -- |
15 | Bullet Feet | S.S. 16G | 04 |
16 | leg 38MM Dia. | S.S. 16G | 04 |
Size : 1350 x 600 x 900 MM

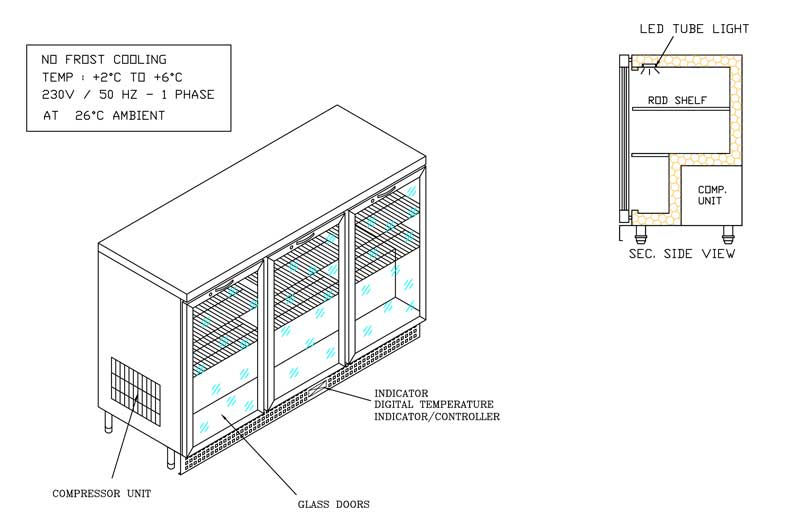

All made as per client requirements
No | Part Name | Material | Qty |
---|---|---|---|
01 | Exterior Body | S.S. 304 20G | -- |
02 | Interior Body | S.S. 304 22G | -- |
03 | Doors | S.S. 304 18G | 03 |
04 | Doors Hinges | Std | 3 Set |
05 | Doors Liners | S.S. 22G | 03 |
06 | Doors Handles | Black PVC | 03 |
07 | Shelves | S.S. Rod | 06 |
08 | Shelves Holder | S.S. 304 16G | 06 Sets |
09 | Compressor | Emerson | 01 |
10 | Controller | Subzero | 01 |
11 | Refrigerant | 134a | -- |
12 | Insulation | 55 MM | -- |
13 | Key Lock | Std | 03 |
14 | Back And Base | S.S. | -- |
15 | Bullet Feet | S.S. 16G | 04 |
16 | leg 38MM Dia. | S.S. 16G | 04 |
Full fabrication will be in S.S. 304. Cocktail station with insulated ice bin and bottle rail with bottom shelf. Same will be available with close from all side and front door.
Cocktail Station with insulated ice bin with bollte rail & 01 U/S.
Size : 32 x 24 x 32 x 2
All Dimensions Are In Inches
All made as per client requirements
No | Description | Malt | Qty |
---|---|---|---|
01 | Top | S.S. 304 16G | 01 |
02 | Upright : 32*32MM Sq Pipe | S.S. 304 16G | 04 |
03 | Bullet | Nylon | 04 |
04 | Under Farme Angle | 25*25*3MM | -- |
05 | Under Self | S.S. 304 18G | 01 |
Same will be fabricated in three parts i.e drain board table, trolley and S.S. bin. S.S. bin will be removable light in wight and placed on the S.S. trolley so that bar tender can easily use the bin.
Size : 18 x 24 x 32 x 2
All Dimensions Are In Inches
All made as per client requirements
No | Description | Malt | Qty |
---|---|---|---|
01 | Top | S.S. 304 16G | 01 |
02 | Uprights : 32*32MM Sq Pipe | S.S. 304 16G | 04 |
03 | Bullets | Nylon | 04 |
04 | Under Farme Angles | -- | |
05 | S.S. Bin | S.S. 304 18G | 01 |
06 | S.S. Trolley | S.S. 304 18G | 01 |
Glass rack table with 03 nos sliding shelf for glass wash basket - under sounter glass washer below
Size : 48 x 24 x 32 x 2
All Dimensions Are In Inches
All made as per client requirements
No | Description | Malt | Qty |
---|---|---|---|
01 | Top | S.S. 16G | 01 |
02 | Uprights : 32*32MM Sq Pipe | S.S. 16G | 04 |
03 | Bullets | Nylon | 04 |
04 | Under Farme Angles | -- |
Liquore Station help to maintain an organisized and attractive bottle collection in the bar. Same is available with closed cabinate and front S.S. door
Bottle Rail Step Type
Size : 18 x 24 x 32 x 2
All Dimensions Are In Inches
All made as per client requirements
No | Description | Malt | Qty |
---|---|---|---|
01 | Top | S.S. 16G | 01 |
02 | Uprights : 32*32MM Sq Pipe | S.S. 16G | 04 |
03 | Bullets | Nylon | 04 |
04 | Under Farme Angles | -- | |
05 | Covering | S.S. 19G | -- |
Fabricated in S.S. 304 16G same has will be in two parts i.e S.S. deep tray and S.S. Notch panel. Notch panels has finger hole at both the side to the remove the same. It has a tube welded to tray for drainage.
All Dimensions Are In Inches
All made as per client requirements
No | Description | Malt | Qty |
---|---|---|---|
01 | Drip Tray | S.S. 304 16G | 01 |
02 | CNC Notching Panel | S.S. 304 16G | 01 |
03 | Drainage Tube | S.S. | 01 |

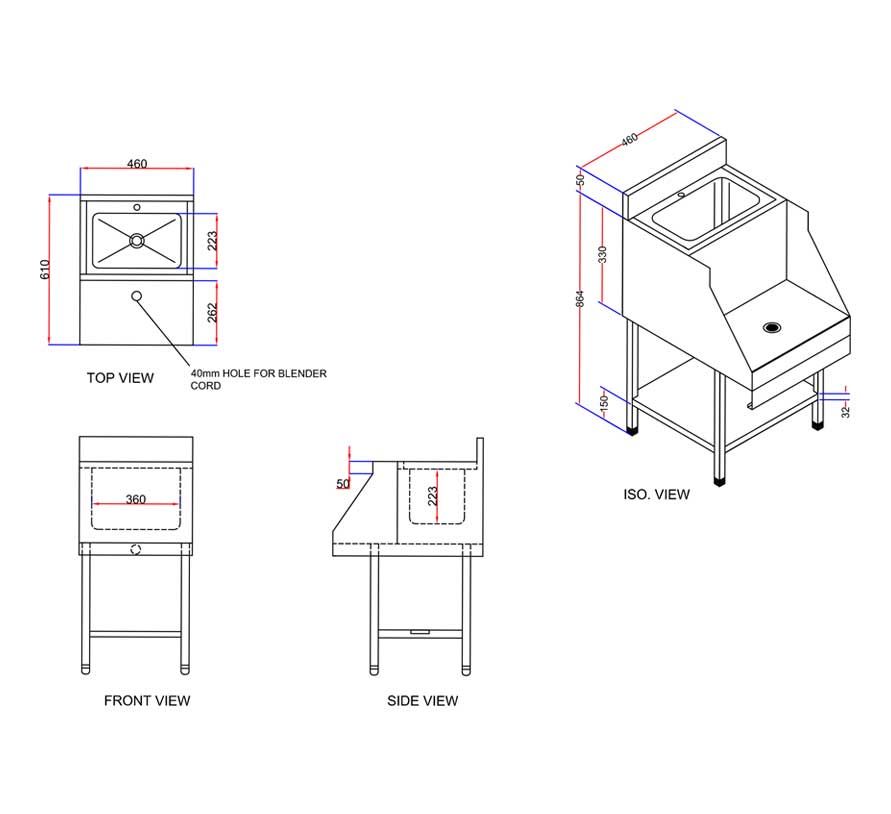

S.S. Sink with blender station
All made as per client requirements
No | Description | Malt | Qty |
---|---|---|---|
01 | Outer Cladding | S.S. 304 20G | 01 |
02 | Top | S.S. 304 16G | 01 |
03 | Sink | S.S. 304 16G | 01 |
04 | Blender Ledge | S.S. 304 18G | 01 |
05 | Cross Bracing 25*25 Pipe | S.S. 304 16G | 03 |
06 | Legs 32*32Sq MM Pipe | S.S. 304 16G | 04 |
07 | Bullet Feet | Nylon | 04 |
08 | Bottom Shelf With Stiffner | S.S. 304 18G | 01 |
S.S. drain board table with undershelves
All made as per client requirements
No | Description | Malt | Qty |
---|---|---|---|
01 | Top | S.S. 304 20G | -- |
02 | Under Farme Angles | S.S. 25*25*3MM | -- |
03 | Uprights : 32*32 MM Sq Pipe | S.S. 304 | -- |
04 | Blender Feet | Nylon | -- |
05 | Under Shelves With Stiffner | S.S. 304 18G | -- |
