Table Sink Rack Trolleys

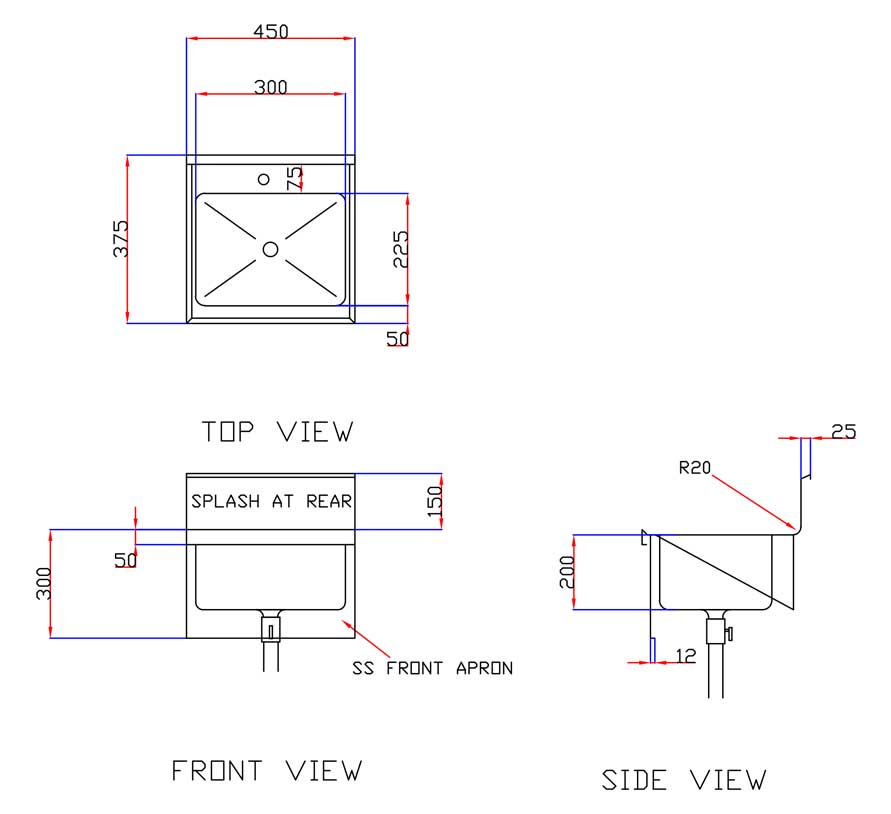

HAND WASH SINK
S.S. hand wash sink (Wall Mounted)
All made as per client requirements
| No | Description | Malt | Qty |
|---|---|---|---|
| 01 | Top | S.S. 304 16G | 01 |
| 02 | Bracket | S.S. 16G | 02 |
| 03 | Sink 300*225*200 | S.S. 304 16G | 01 |
| 04 | Aproin | S.S. 304 20G | 01 |

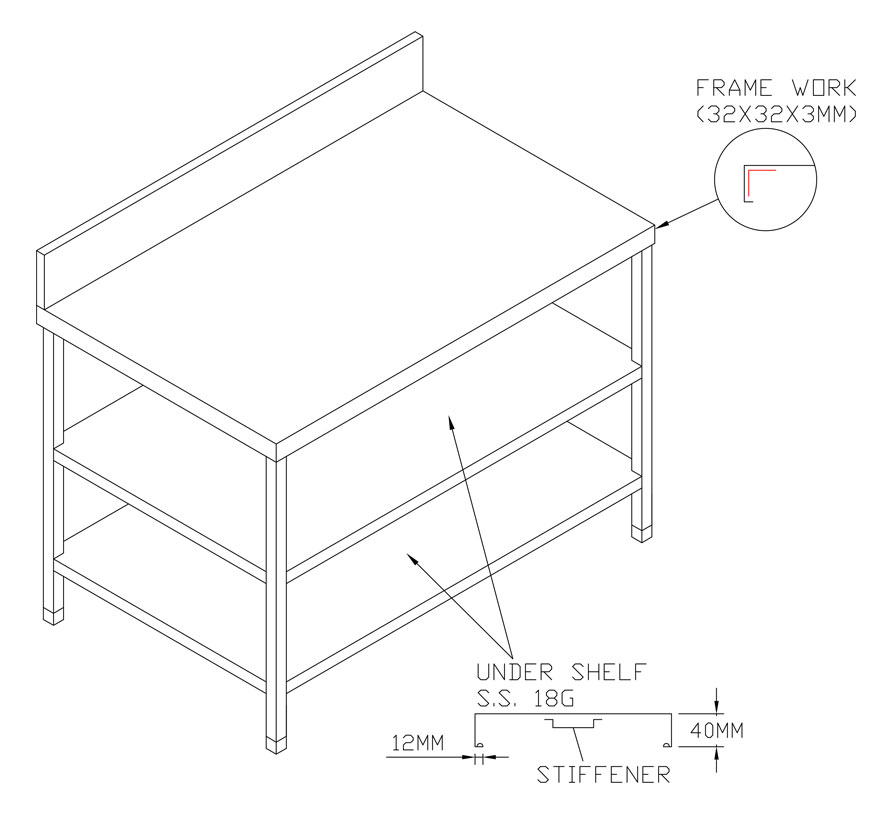

TABLE WITH 2 UNDER SHELVES
Made of full S.S., S.S. top will be with splash or without splash. And top will be of 50mm thickness used for static preparation. Available with under shelves / Cabinets / with drawers as per needs.
All made as per client requirements
| No | Description | Malt | Qty |
|---|---|---|---|
| 01 | Top | S.S. 304 16G | 01 |
| 02 | Farme Work- 32*32*3MM | S.S. L-Angle | -- |
| 03 | Under Shelf | S.S. 304 18G | 02 |
| 04 | Stiffener | S.S. 304 16G | 02 |
| 05 | Bullet Feet - Adjustable | Nylon | 04 |
SS SINGLE SINK UNIT
Our organization has gained recognition as a flourishing organization for providing Single Sink Unit. Offered sink unit is manufactured using premium quality components and advanced technology in line with industry norms. Widely used for washing utensils, provided sink unit can be availed in variegated specifications and sizes as per the needs of our clients. Furthermore, we offer this sink unit to our clients at pocket friendly prices.
Our sink are with drain coupling
Easy to clean after use
Top constructed in heavy duty gauge of Stainless Steel
Legs made in Square/Round Stainless Steel Pipes
Height adjustable bullet feet
All made as per client requirements
| No | Description | Malt | Qty |
|---|---|---|---|
| 01 | Top | S.S. 304 16G | 01 |
| 02 | Farme Work- 32*32*3MM | S.S. L-Angle | -- |
| 03 | Sink | S.S. 304 16G | 01 |
| 04 | Cross Bracing - 25*25MM Sq. | S.S. 304 16G | 03 |
| 05 | Drain Coupling 1.5" | Std | 01 |
| 06 | Leg : 40*40MM Sq Pipe | S.S. 304 16G | 04 |
| 07 | Bullet Feet - adjustable | Nylon | 04 |

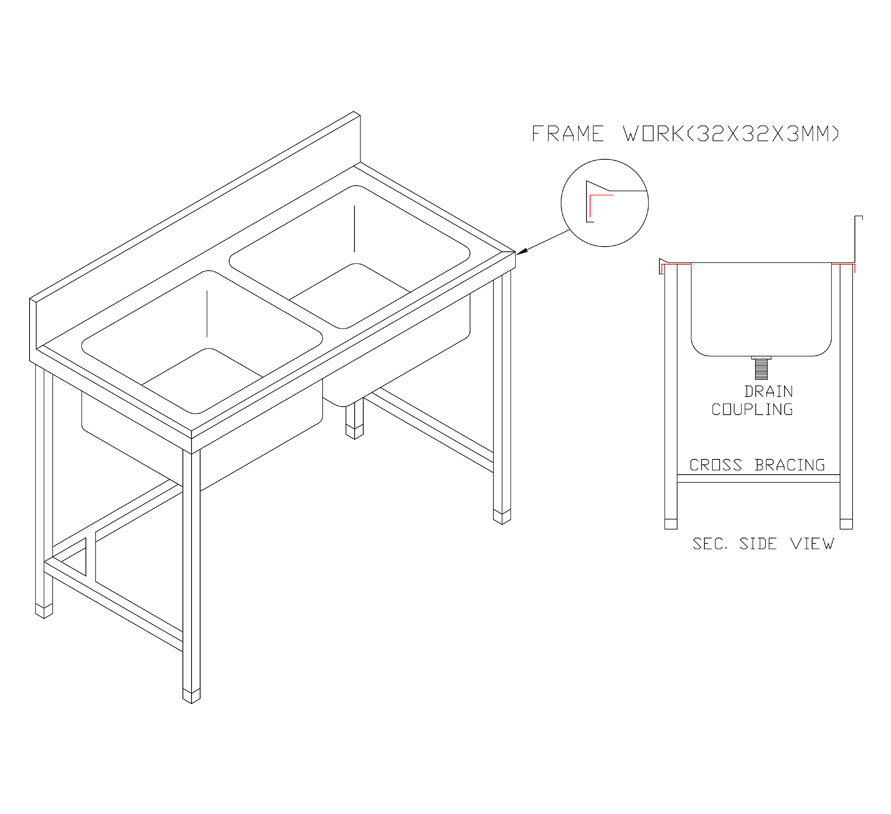

TWO SINK UNIT
We have emerged as a prominent organization in manufacturing and supplying an unparalleled range of Two Sink Unit that helps in washing numerous kitchen utensils simultaneously. Available with two different sinks, these units can have two different water connections to it.
Our sink are with drain coupling
Easy to clean after use
Top constructed in heavy duty gauge of Stainless Steel
Legs made in Square/Round Stainless Steel Pipes
Height adjustable bullet feet
All made as per client requirements
| No | Description | Malt | Qty |
|---|---|---|---|
| 01 | Top | S.S. 304 16G | 01 |
| 02 | Farme Work- 32*32*3MM | S.S. L-Angle | -- |
| 03 | Sink | S.S. 304 16G | 02 |
| 04 | Cross Bracing - 25*25MM Sq. | S.S. 304 16G | 03 |
| 05 | Drain Coupling 1.5" | Std | 02 |
| 06 | Leg : 40*40MM Sq Pipe | S.S. 304 16G | 04 |
| 07 | Bullet Feet - Adjustable | Nylon | 04 |
THREE SINK UNIT
For the purpose of cleaning and washing plates and other dishes, the offered three sink unit is used in homes, hotels and restaurants. Owing to its resistance to corrosion and high tensile strength, the offered three sink unit is highly appreciated.
Our sink are with drain coupling
Easy to clean after use
Top constructed in heavy duty gauge of Stainless Steel
Legs made in Square/Round Stainless Steel Pipes
Height adjustable bullet feet
All made as per client requirements
| No | Description | Malt | Qty |
|---|---|---|---|
| 01 | Top | S.S. 304 16G | 01 |
| 02 | Farme Work- 32*32*3MM | S.S. L-Angle | -- |
| 03 | Sink | S.S. 304 16G | 03 |
| 04 | Cross Bracing - 25*25MM Sq. | S.S. 304 16G | 03 |
| 05 | Drain Coupling 1.5" | Std | 02 |
| 06 | Leg : 40*40MM Sq Pipe | S.S. 304 16G | 04 |
| 07 | Bullet Feet - Adjustable | Nylon | 04 |
STORAGE RACK
Plan, Perforated or rod shelves available in different length and deepth full construction of S.S. shelves designed to be bear a maximum load.
All made as per client requirements
| No | Description | Malt | Qty |
|---|---|---|---|
| 01 | Shelf | S.S. 304 18G | 05 |
| 02 | Stiffener | S.S. 304 16G | 05 |
| 03 | Leg : 40*40MM Sq Pipe | S.S. 304 16G | 04 |
| 04 | Bullet Feet - Adjustable | Nylon | 04 |

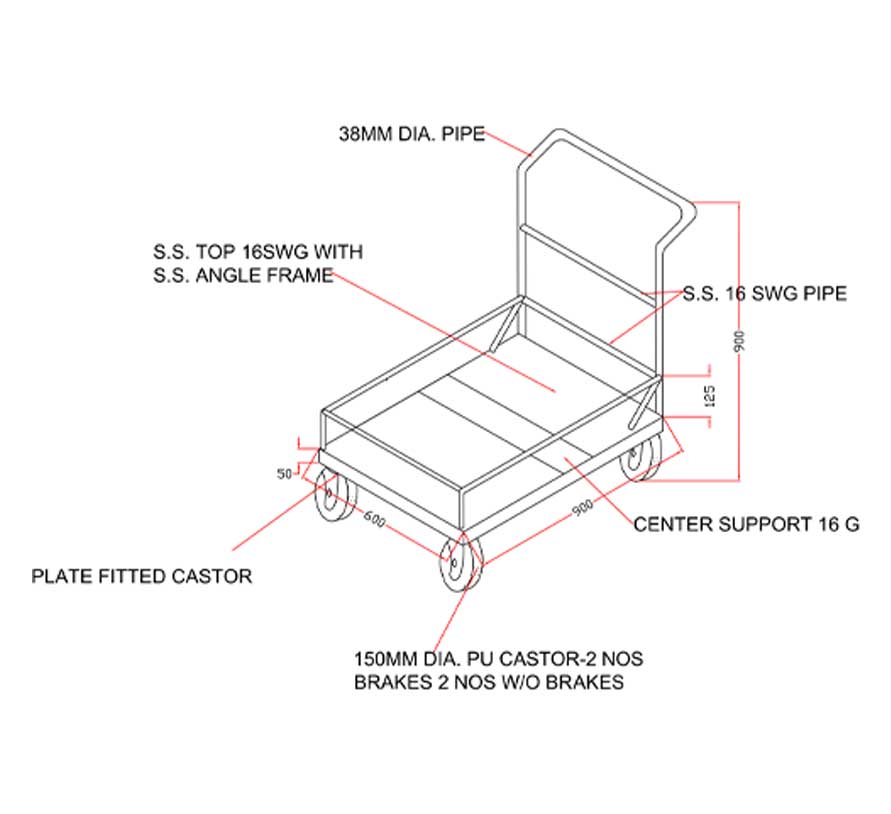

SS PLATFORM TROLLEY
Full made of S.S. used for transportation of heavy materials in hospitality industries. Provided with heavy duty castors (Two nos. with brakes and Two nos. without brakes)
All made as per client requirements
| No | Description | Malt | Qty |
|---|---|---|---|
| 01 | Base Shelf | S.S. 304 16G | 01 |
| 02 | Stiffener | S.S. 304 16G | 01 |
| 03 | Handle 38MM Pipe | S.S. 304 16G | 01 |
| 04 | Wheel Heavy Duty | Std | 04 |
SS UTILITY TROLLEY
Made of full SS with two or three shelves. Provided with heavy duty castors (Two nos. with brakes and Two nos. without brakes)
All made as per client requirements
| No | Description | Malt | Qty |
|---|---|---|---|
| 01 | Shelf | S.S. 304 18G | 03 |
| 02 | Stiffeners | S.S. 304 16G | 03 |
| 03 | Handle 38MM Pipe | S.S. 304 16G | 01 |
| 04 | Wheel Heavy Duty | Std | 04 |
GN/VEG CRATE TROLLEY
MADE OF FULL SS
Size : 500 x 620 x 1920
ALL DIMENSIONS ARE IN MM
All made as per client requirements
| No | Description | Malt | Qty |
|---|---|---|---|
| 01 | Top And Bottom | S.S. 18G | 01 |
| 02 | Upright : 40*40MM Sq Pipe | S.S. 16G | 04 |
| 03 | Castor Heavy Duty | Std | 04 |
| 04 | L - Angle 32*32MM | S.S. 16G | 14 |
